The Best EV Charging Station 16A with Phone APP on sale
Driven by new technologies such as big data, Internet of Things, artificial intelligence and virtual assistants, the best ev charging stations are becoming more and more intelligent. At present, customers who use mobile for charging equipment location occupy the majority of charging customers. Charging customers can also access the system and pay for charging through mobile clients. Charging stations owners can realize remote monitoring of charging equipment through mobile to ensure normal operation of charging business.
Feature
* Full protection
Full electrical protection, over/under temperature protection, Protection
against lightning, leakage, short circuit, over current, etc.
* Stable
IP54 protection, used for outdoor.
* Intelligent
LAN(RJ-45)/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP 1.6 standard, type 2 or type 1 connector.
* Easy to install and operation
Wall-mounting or pole-mounting optional.
Description
| Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
| AC Power input rating | 1 phase 220V±15% | 3 phase 380V±15% | AC Level 2 240V |
| AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
| 7KW/32A | 22KW/32A | 7KW/32A |
| / | 43KW/63A | 10KW/40A |
| Rated Frequency | 50/60HZ |
User interface & control
| Charging control | Plug and charge √ | RFID card √ | CMS operate √ |
| Display Screen | 4.3inch LCD screen |
| Wifi connection | Support √ | OCPP Protocol | 1.6J √ & 2.0.1 √ |
| Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ |
Moblie APP

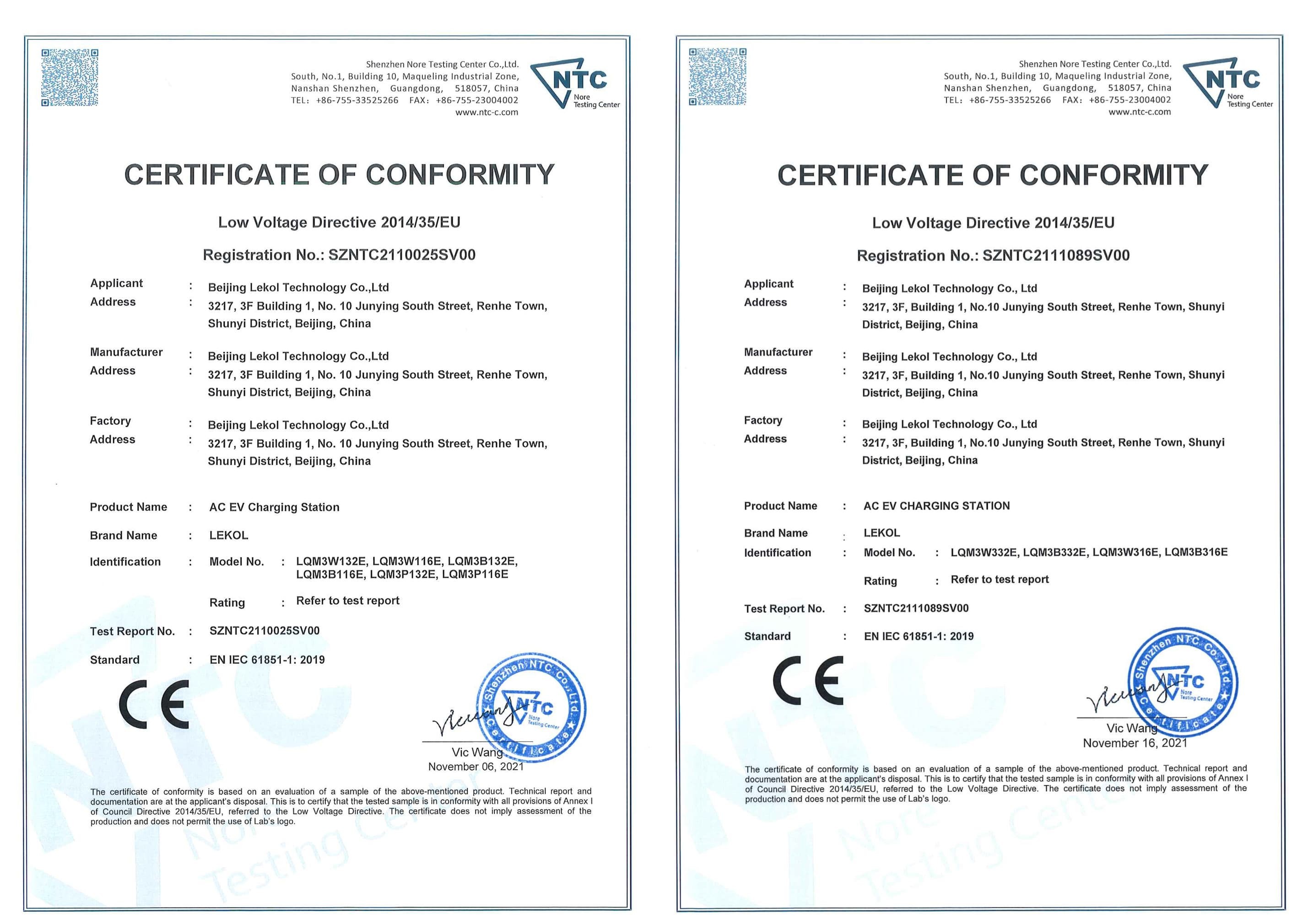

Certification
CAUTION:
1. Don't submerge the ev charging box in water;
2. Don't step on, fold or knot the cable;
3. Don't drop the EV charging box or place a heavy object on it;
4. Don't place the charging cable near high temperature object when charging；
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；
6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；
It is suggested that the power distribution is done by the professionals；
7. Don't put fingers into the charging connector when the power plug is still connecting to the
power;
8. Don't use this ev charging box when the cable is damaged;
9. The ev charging box is only for ev charging using;
10. Don't use this device with an extension cord or adaptor.
